Anexa.11.2.1.2 Dop de golire (STAS 5304-71)

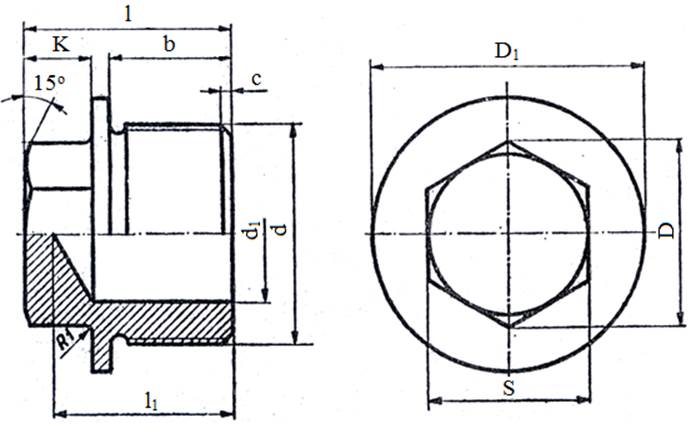

Formă și dimensiuni


Valori dimensiuni

d

S

D

K

D1

b

l

d1

l1

M12x1,5

14

15,5

6

18

14

23

5

20

M14x1,5

14

15,5

6

20

14

23

5

20

M16x1,5

17

18,9

6

24

14

23

5

20

M18x1,5

17

18,9

8

26

14

26

8

20

M20x1,5

19

21,1

8

28

18

30

10

26

M24x1,5

22

24,5

9

32

20

34

15

29

M30x1,5

24

26,7

10

39

20

34

15

29



Notare în desenele de ansamblu

Dop filetat M dxp  STAS 5304-71 (ex. Dop filetat M14x1,5  STAS 5304-71 grupa 6.8)
